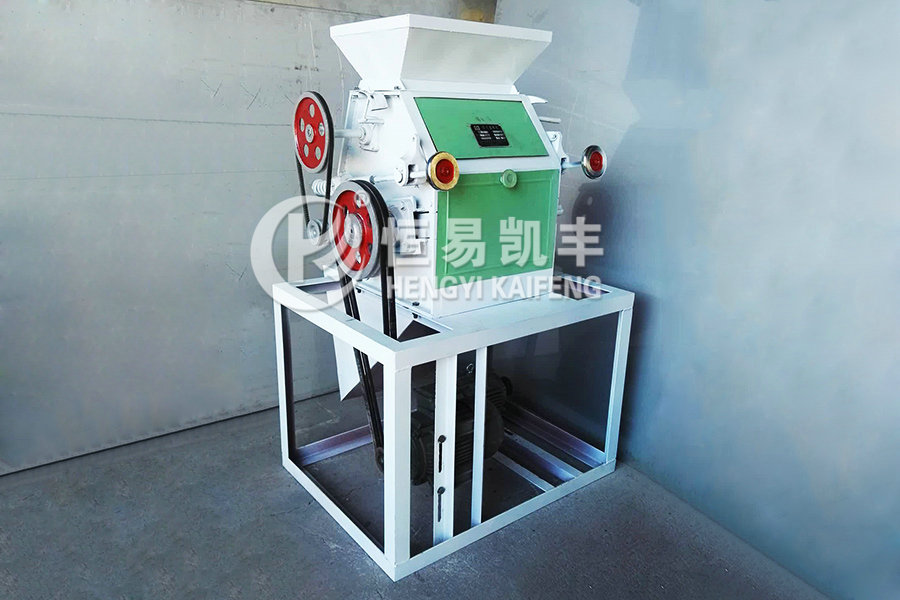

Compound counter roll crusher

Fmfq (s) compound mill is widely used in large and medium-sized activated carbon production enterprises with high output equipment, and can also be used in corn, sorghum, pepper, brewing, feed industry material grinding.

characteristic:

1. Compact structure, novel design, flexible and reliable operation, high production efficiency.

2. Cast iron base, manganese steel frame structure, smooth operation.

3. Synchronous belt drive, eccentric tension mode, reasonable structure, long service life.

4. Feeding system motor drive independently, flexible control, to ensure that the first feed after grinding

5. The roller bearing is disassembled hydraulically without hammering to ensure the matching accuracy of roller and bearing.


參數
parameter
型號 Model
FMFQ(s)50*2FMFQ(s)60*2FMFQ(s)80*2FMFQ(s)100*2
磨輥規格(mm)
Grinding roller spec
Φ250-500Φ250-600Φ250-800Φ250-1000
磨輥使用范圍(mm)
Scope of use
Φ250 ~ 500
快輥轉速(mm)
Quick roll Speed
550
磨輥安裝方式
Installation mode
水平 Horizontal
工作壓力(mpa)
Pressure
0.4-0.6
磨粉機耗氣量(m3/h)
Air consumption
0.06-0.08
喂料形式
Feeding method
雙輥 Double rollers
快、慢輥速比
Roller speed ratio
2:5:12:11:5:11:25:1
電機功率(Kw)
Motor power
5.5-155.5-18.57.5-2211-22
重量(Kg)
weight
2400270029003100
外形尺寸(mm)
Outline size
1400*1410*18501500*1410*18501700*1410*18501900*1410*1850
