Shandong Hengyi Kaifeng Machinery Co., Ltd.

Always dedicated to the R & D / sales of activated carbon equipment

Hotlint：

13153736907

Your location：HENGYI KAIFENG >> Activated carbon conveying and lifting equipment

HENGYI KAIFENG · Activated carbon conveying and lifting equipment

Passed the ISO-9001 national quality system certification and obtained a number of national patents

Activated carbon production equipment Activated carbon regeneration equipment Complete set of activated carbon deep processing equipment Activated carbon drying equipment Activated carbon cooling equipment Activated carbon packaging equipment Activated carbon conveying and lifting equipment Activated carbon single machine processing equipment

Z-type hoist

Scan and add WeChat

Mainly used in activated carbon, chemical, plastic, grain, food, hardware and other industries

icon圖標 Tel：131-5373-6907（Mr. Wei）

icon圖標 Address：Yishui County Economic Development Zone, Jining City, Shandong Province

Information details

2 z式提升機

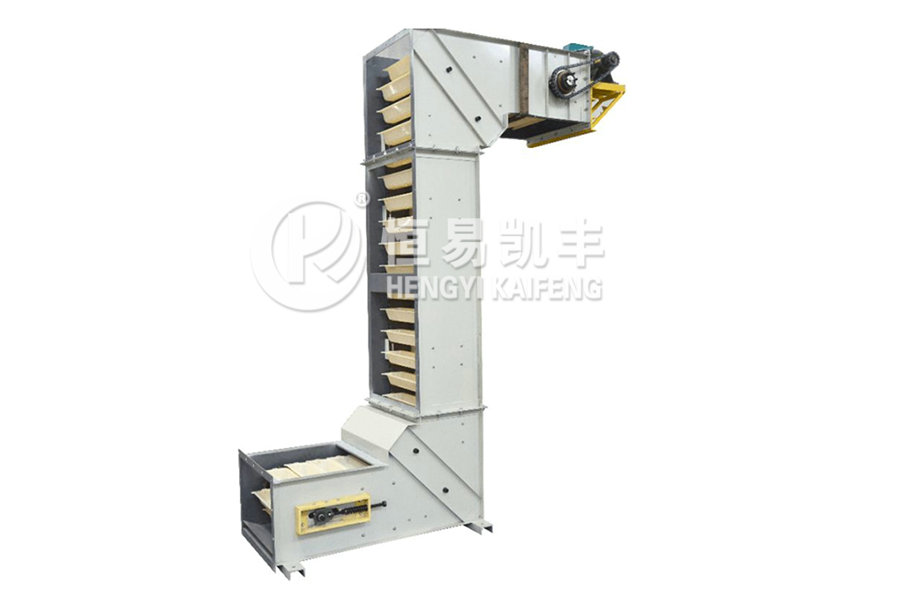

Z-type hoist

It is named after the letter Z according to the different positions of the inlet and outlet; It can meet the requirements of multi-point unloading at any position, and will not damage the material structure in the transportation, and the feeding is uniform and convenient. At present, it is mainly used in activated carbon, chemical industry, plastics, grain, food, hardware and other industries

參數 parameter 型號 Model			ZD-3L	ZD-6L	ZD-8L	ZD-10L	ZD-15L	ZD-20L	ZD-25L
輸送量 Transportation volume	100%	m3/h	6	15	18	22	30	45	56
輸送量 Transportation volume	75%	m3/h	4.5	11	14	16.5	22.5	33.5	42
料斗 Hopper	斗容	L	3	6	6	8	15	20	25
	斗寬	mm	370	470	670	870	500	560	690
	斗距	mm	228.6				330
鏈條 chain	條數	-	2
提升高度 Max.lifting height		m	≤45
水平輸送距離 Maximum horizontal conveying distance		m	≤100
總功率 Total power		Kw	0.72-22
